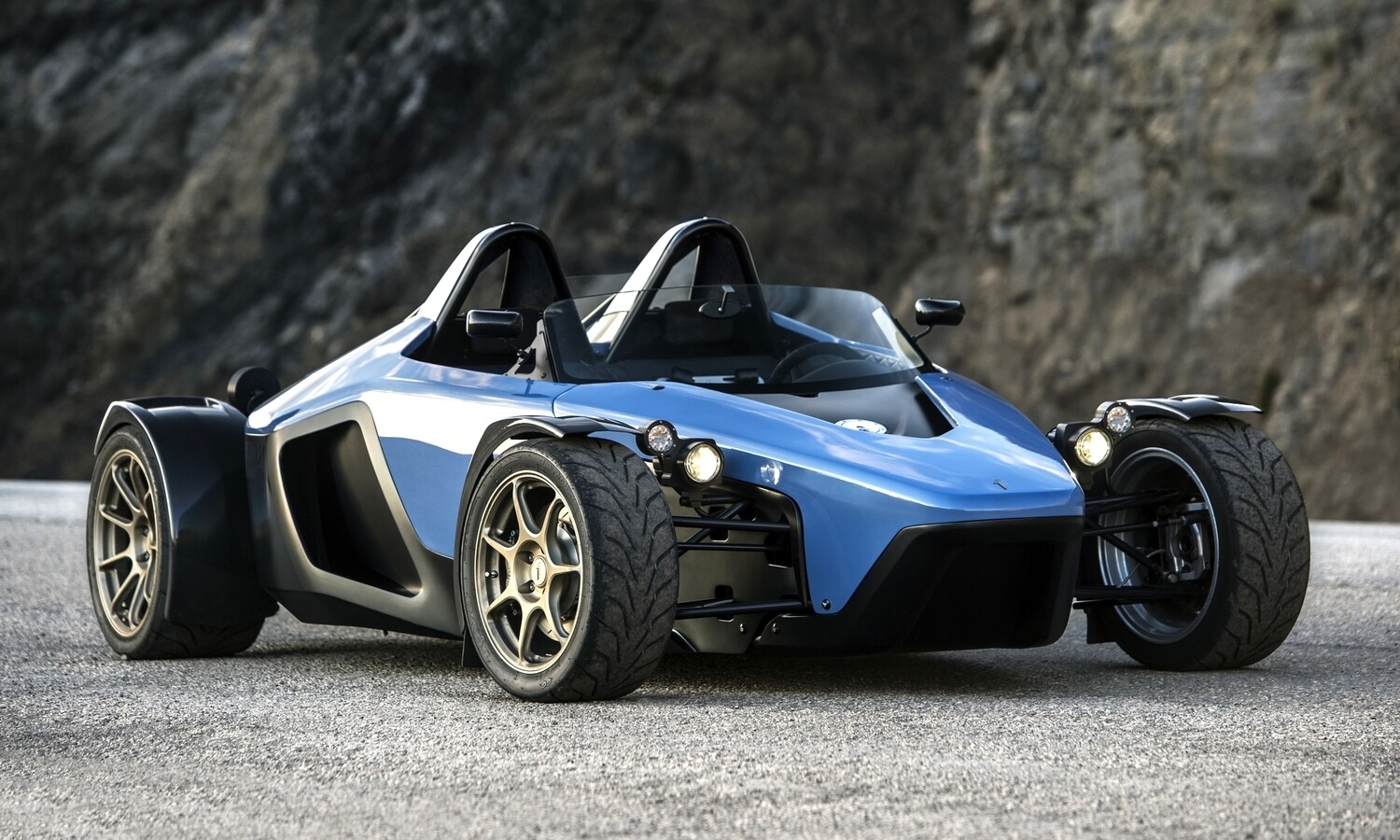

Turnkey LS3 6 Speed Getrag (Foundation Model) Chassis 008 Lamborghini Blu Cepheus
$185 000.00
In stock
Turnkey LS3 6 Speed Getrag (Foundation Model) Chassis 008 Lamborghini Blu Cepheus
Product Details
Turnkey Drakan
This is Chassis 008 with 0 miles on it ready for its new owner. The foundation model was painted in the BMW M3 YAS MARINA BLUE
Chassis 008 is almost the same color it is
Lamborghini Blu Cepheus
SPECS
Tested Performance Specifications:
0 to 60mph = 3.0 seconds
Top speed = 165mph
Lateral(street tires) = 1.2g
Dimensions:
Width: 80 inches
Length: 156 inches
Height: 44 inches
Wheelbase: 103 inches
Weight:
Curb Weight: 2000 pounds
Power to Weight Ratio:
Pounds Per Horsepower: 4.7 lb/hp (’14 Corvette = 7.3. ’14 Porsche 911 = 7.7)
Weight Distribution: 40% (f) / 60% (r)
Engine:
Type: GM Performance Parts LS3 E-Rod. Naturally aspirated V8. (CARB EO # D-126-30)
Displacement: 6.2L
Cylinders: 8
Maximum Power: 430 hp at 5900 rpm
Maximum Torque: 424 ft-lb
Engine Max RPM: 6600 rpm
Lubrication System: Wet sump. baffled oil pan.
Exhaust: GM manifolds, catalytic converters, custom dual mufflers
Recommended Fuel: 91 Octane
Stand alone ECU:
Engine Management: GM Performance controller
Fuel System Construction: Custom alloy fabrication with internal baffles and collector system
Fuel Tank:
Capacity: 13 gallons
Transmission:
Gearbox & Driveline
Model: Porsche G96 Transaxle
Type: 6 speed syncromesh
Gear Selection: Cable
Pedal Box: Adjustable, billet, floor-mounted
Suspension:
Type front/rear
Adjustable pushrod, rising rate bell cranks, twin wishbone, shim adjustable camber
Chassis:
Chromoly tube twin wishbone
Uprights: Ultra-light, billet aluminum uprights
Dampers: Nitron Compression & rebound adjustable
Chassis TIG welded Chromoly tube
Body Construction:
Body Type: Lightweight composite
Windshield: DOT Safety glass with wiper and fluid reservoir
Braking system:
Calipers: Wilwood – Forged, Radial 4 Piston (F&R)
Discs: Girodisc 12.9” floating, ventilated discs, slotted, billet hats
Master Cylinder: Pedal box-mounted, dual with bias adjustment knob in-cabin
Emergency Brake: Wilwood caliper and hand operated
Wheel and Tire Dimensions:
Wheel & Tires:
HRE Forged alloy 17”x 8” (Front), 18”x10.5” (Rear)
Toyo R888R 235/40 R17 (Front), 315/30 R18 (Rear)
Interior:
Seats: Steel ergonomic design
Trim: Water resistant leather, memory foam padding
Steering Wheel: Momo 310mm diameter , quick release hub
Seat Belts: Schroth Enduro 6pt safety restraint system
Fire Extinguisher: Safecraft 2.5lb Halon, hand-held
Dash: AiM MXS with data logging
Lighting system:
Front: Hella: Bi-Xenon headlights, LED turn signals
Rear: Hella: LED taillights & turn signals
Other: Hella: LED Reverse lamp, LED Rear Fog light's
Vehicle specification is subject to minor changes before delivery
Body panel Options:
Several upgrades are under development starting with a removable Targa top roof panel system
Aero dynamic options:
1. Aero package which consists of front & rear spoiler and diffuser.
2. Triple Adjusting Dampers
Carbon Fiber Targa Top in development
We are working on Targa top made from Carbon fiber and will be available for future purchases for both current Drakan owners and new customers which adds an additional 15k to your order.
AC Unit:
We are currently working on the electric air-condition unit which will be done in the next 8 months for new 2025 Drakan order builds. This will add an additional 12k to 14k cost to the build order.
Luggage / Storage:
1. We will be developing a saddle bag system which will cover both the driver and passenger side of the rear chassis.
2. Roof box which will use the rear roll bar struts to hold the maximum amount of storage for proper multi state road trips.
